активная ак. система с 15" ферритовым динамиком, SPL: 133 дБ, Мощность (RMS) 1000 Вт, частотный диапазон 48 Hz–19 kHz @4pi (-10 dB), двойной 36мм "стакан" для мотнажа на стойку, совместим с JBL PRO Connect, 717 x 465 x 383 мм, 24,1 кг
Артикул: N0080
Наличие
- Активная/ПассивнаяАктивная
- Цвет (базовый)Чёрный
- Страна производстваМЕКСИКА
Технические характеристики
Transducers:
915G 15” ferrite magnet woofer
JBL 2408H-2 1.5” poly-annular diaphragm compression driver
Updated JBL image control waveguides improve dispersion
FEA flared port design reduces air noise and distortion
Low-noise, low-distortion gain staging design
Lightweight, efficient Class D amplification
Power: 2,000 watts peak/1,000 watts RMS
Frequency response: 48 Hz–19 kHz @4pi (-10 dB); 60 Hz–16 kHz @4pi (-3 dB)
Dispersion: 90° x 50°
Max SPL: 133 dB
Crossover frequency: 1,920 Hz
Color LCD screen provides access to comprehensive DSP suite
DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
Optimized presets for pairing full-range speakers with subwoofers
JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
Polypropylene/talcum composite cabinet is optimized for rigidity and durability

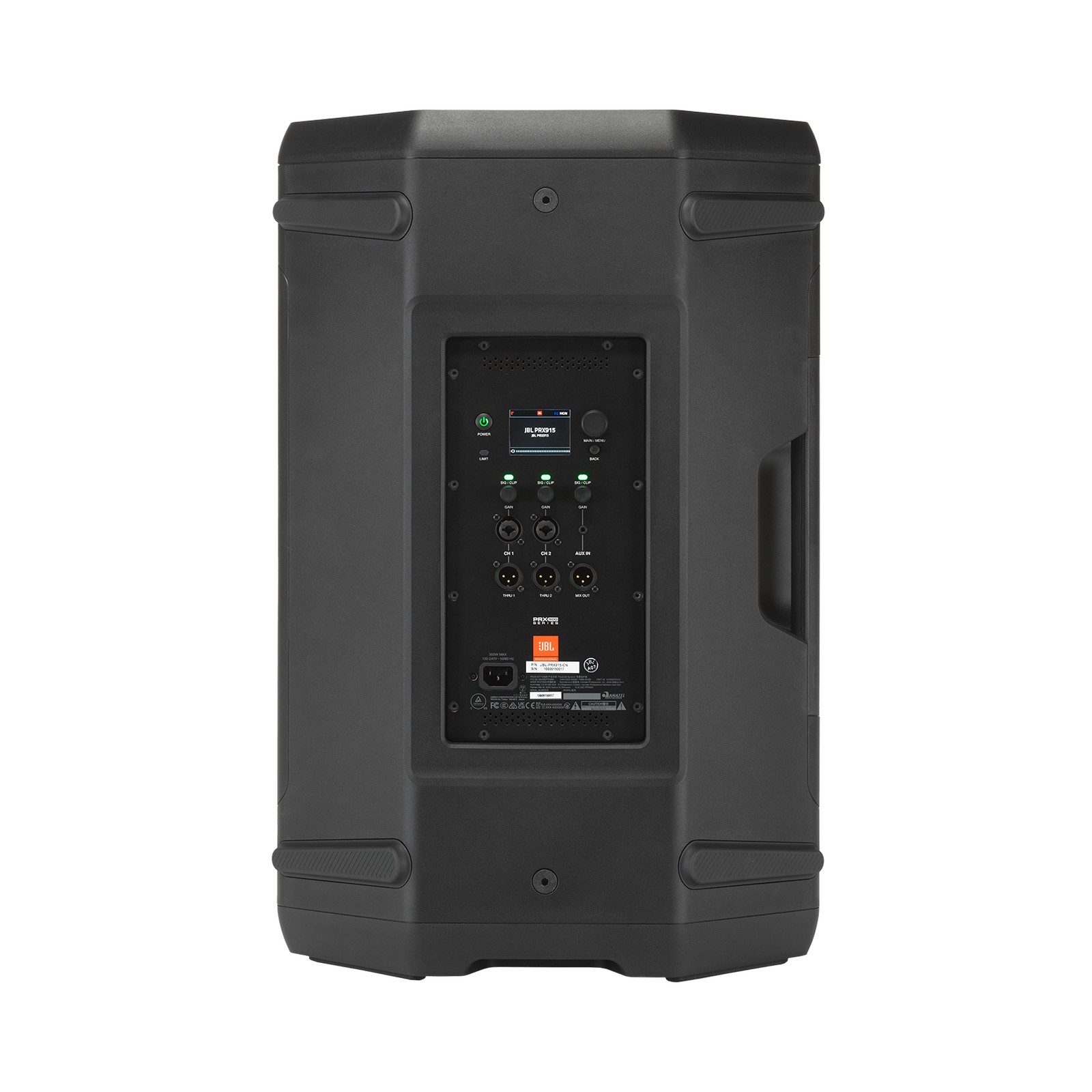

I/Os:
2 XLR balanced Combo jacks
1 3.5mm aux
2 XLR-M loop-through
1 XLR-M mix out
Two integrated handles (top and side)
Suspension/mounting: dual 36mm pole socket, six M10 suspension points
Quiet fanless operation
Ultra-low system latency: <1ms
Net weight: 24.1 kg (53.1 lbs); gross weight: 28.7 kg (63.3 lbs)
Dimensions: 717mm x 465 mm x 383 mm (28.2 in x 18.3 in x 15.08 in) (H x W x D)
Shipping dimensions: 749 mm x 574 mm x 495 mm (29.5 in x 22.6 in x 19.5 in) (H x W x D)
Backed by industry-leading seven-year warranty
Transducers:
915G 15” ferrite magnet woofer
JBL 2408H-2 1.5” poly-annular diaphragm compression driver
Updated JBL image control waveguides improve dispersion
FEA flared port design reduces air noise and distortion
Low-noise, low-distortion gain staging design
Lightweight, efficient Class D amplification
Power: 2,000 watts peak/1,000 watts RMS
Frequency response: 48 Hz–19 kHz @4pi (-10 dB); 60 Hz–16 kHz @4pi (-3 dB)
Dispersion: 90° x 50°
Max SPL: 133 dB
Crossover frequency: 1,920 Hz
Color LCD screen provides access to comprehensive DSP suite
DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
Optimized presets for pairing full-range speakers with subwoofers
JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
Polypropylene/talcum composite cabinet is optimized for rigidity and durability
I/Os:
2 XLR balanced Combo jacks
1 3.5mm aux
2 XLR-M loop-through
1 XLR-M mix out
Two integrated handles (top and side)
Suspension/mounting: dual 36mm pole socket, six M10 suspension points
Quiet fanless operation
Ultra-low system latency: <1ms
Net weight: 24.1 kg (53.1 lbs); gross weight: 28.7 kg (63.3 lbs)
Dimensions: 717mm x 465 mm x 383 mm (28.2 in x 18.3 in x 15.08 in) (H x W x D)
Shipping dimensions: 749 mm x 574 mm x 495 mm (29.5 in x 22.6 in x 19.5 in) (H x W x D)
Backed by industry-leading seven-year warranty
